Gaggenau 200 Series Downdraft Extractor AL200190 90cm in Gaggenau Black - hero product shot, retracted position, top view

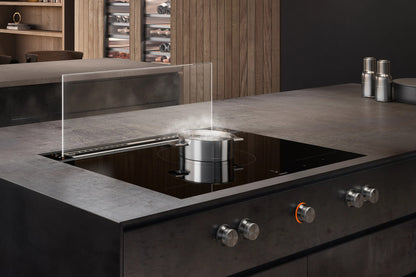

Gaggenau 200 Series Downdraft Extractor AL200190 - raised extraction position, black housing visible

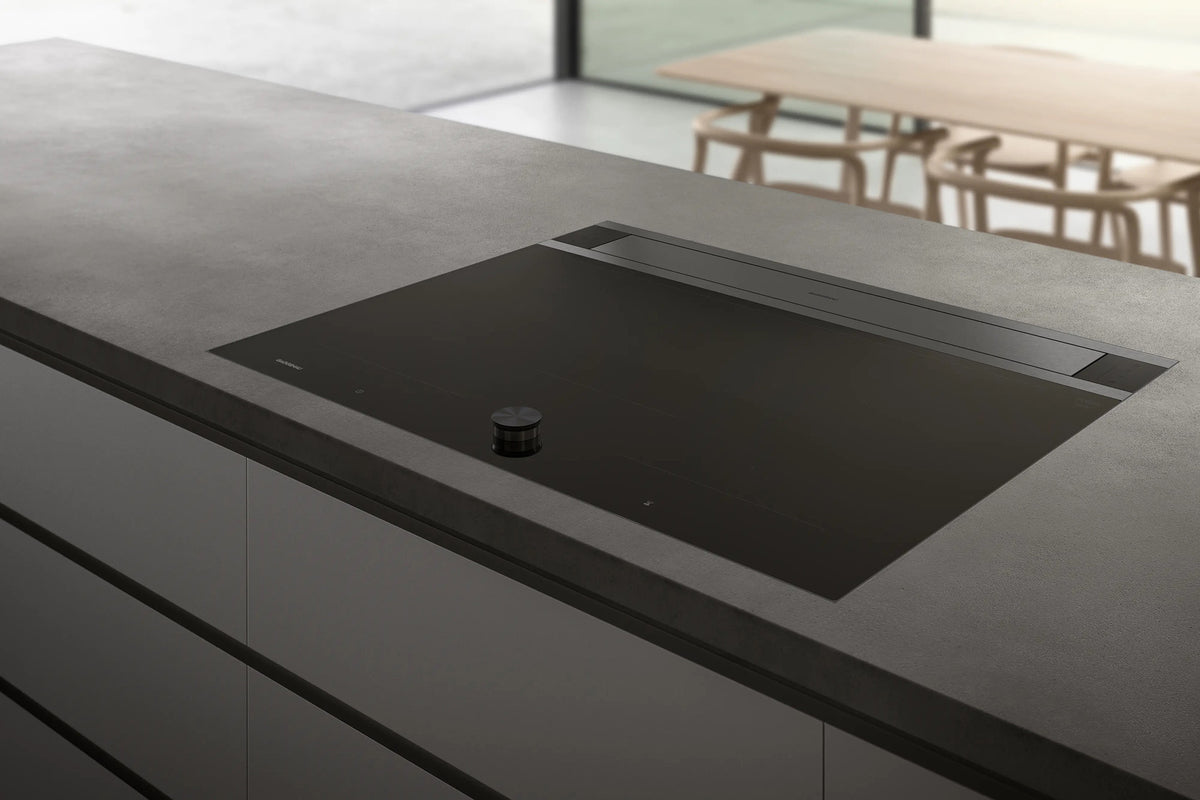

Gaggenau 200 Series Downdraft Extractor AL200190 - lifestyle kitchen installation shot

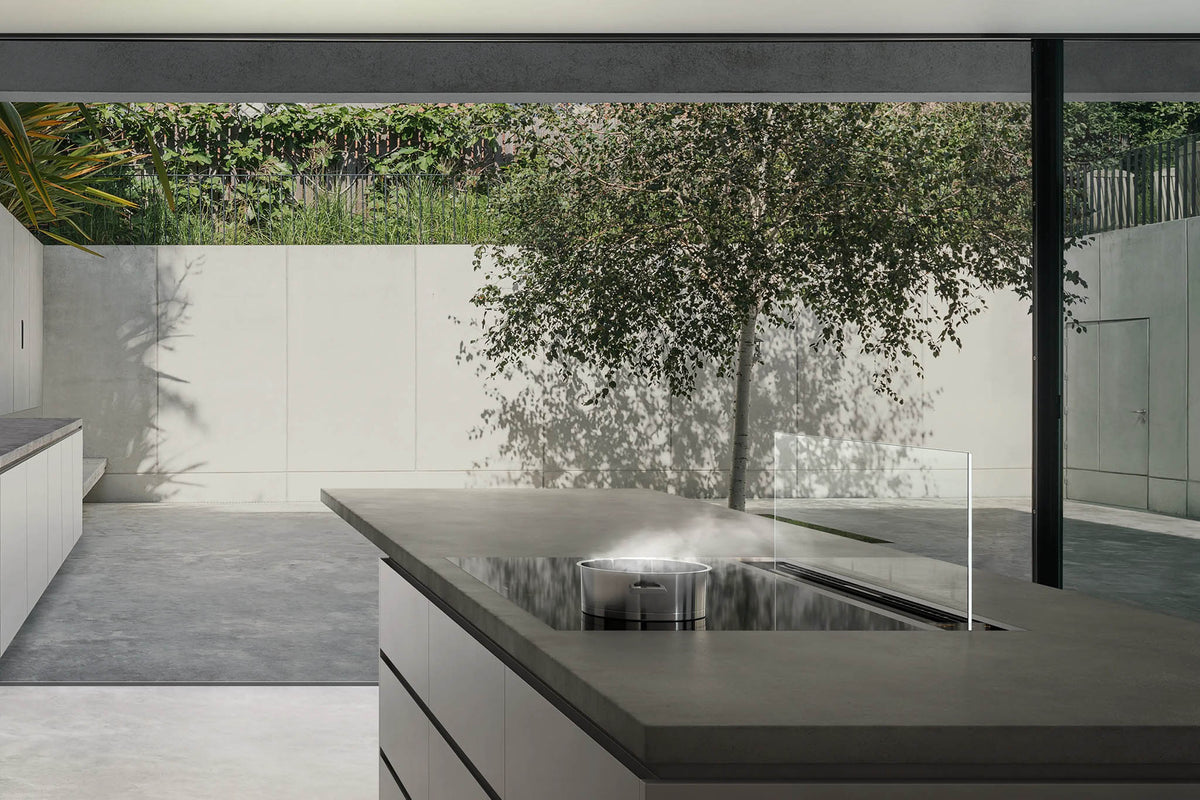

Gaggenau 200 Series Downdraft Extractor AL200190 - close-up of black extraction grille and housing

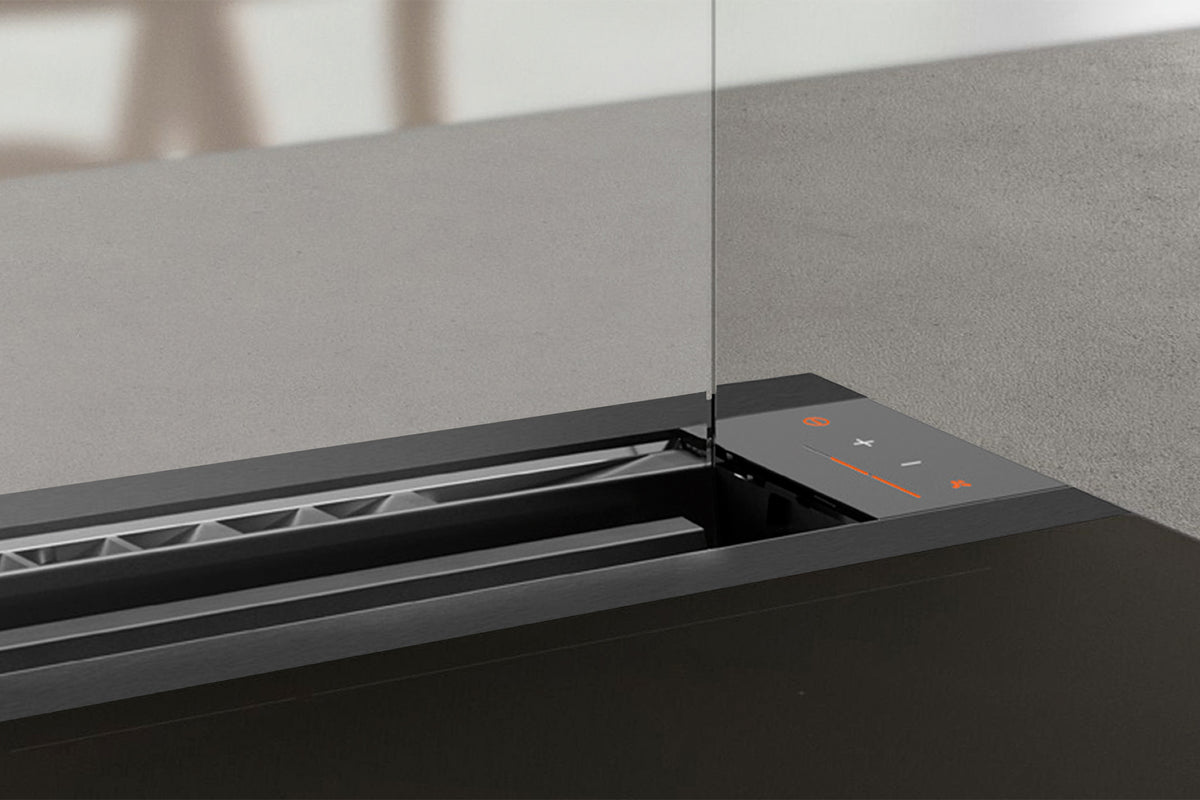

Gaggenau 200 Series Downdraft Extractor AL200190 - side profile showing retracted height

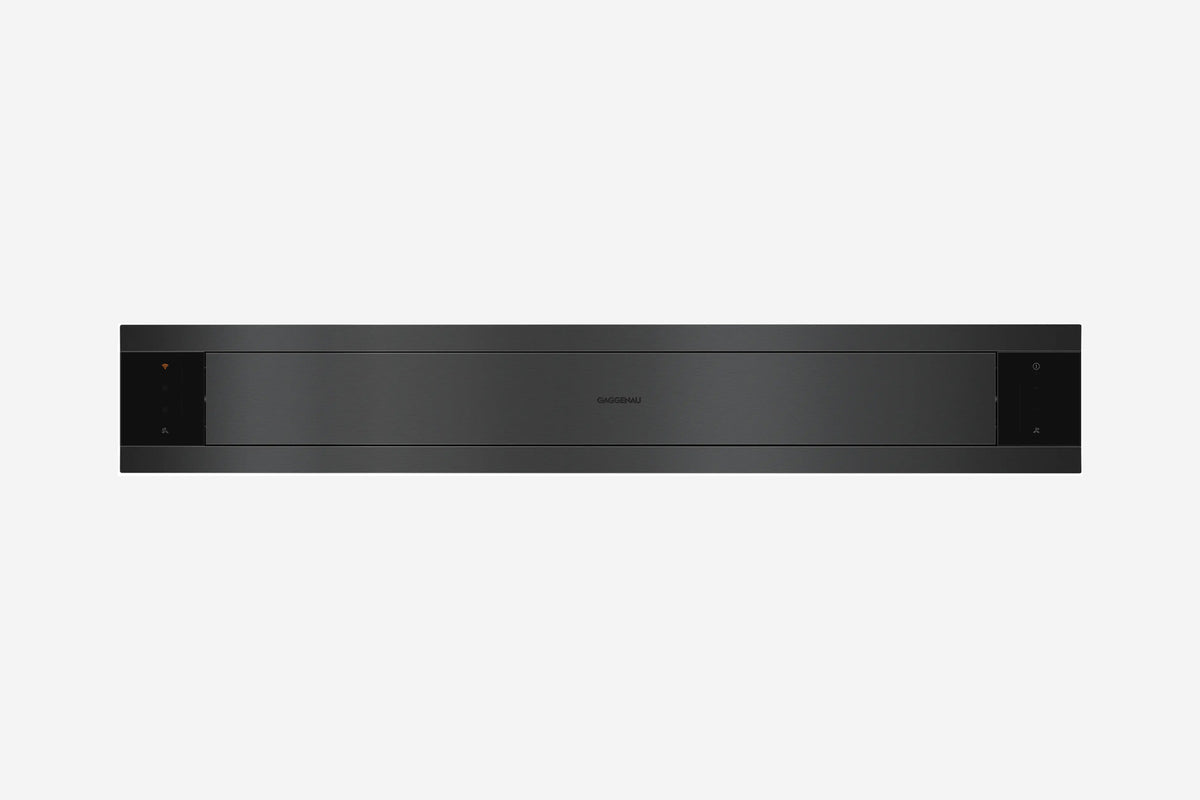

Gaggenau 200 Series Downdraft Extractor AL200190 - in-use shot with extraction active above hob

AL200190

• In stock

Gaggenau 200 series 90 cm downdraft extractor

Downdraft extractor

£POA
  • Best price guaranteed
  • Approved Gaggenau partner

You have 0 items in your multibuy quote

Loading delivery date...
Speak to a real person

Speak to a real person

Give our team a call on 0113 868 3586

Extraction never looked so good

The Gaggenau 200 Series downdraft extractor captures steam and odours directly at the cooking surface, offering an alternative to traditional overhead extraction. Installed beside or behind the hob, it rises when needed and retracts flush into the worktop when not in use, maintaining a clean and uncluttered kitchen design. A refined glass panel gives the extractor a lighter, more contemporary appearance, allowing it to integrate seamlessly with modern cooktops and surrounding materials.

  • Captures odours at source - stops grease and smells from rising.
  • Hidden when not in use - unit retracts into the worktop.
  • Ideal for islands - perfectly suited to open plan kitchens and central cooking zones.
  • Combinable with Vario - set alongside any other 200 Series Vario cooktop for even more cooking power.
  • Keep the convo flowing - 62 dB low noise fan.

Specifications

General / Design
Colour Gaggenau Black
Surface Material Aluminium / Glass
Type Downdraft extractor
Lighting Ambient lighting
Dimensions (WxHxD) 854 x 703 x 140 mm
Height in Use 250 mm
Connections Electrical connection 220 - 240v
Energy Rating A
Functions & operations
Installation Surface or flush
Operation Electric
Display Control Touch control
Connectivity Gaggenau Home Connect
Features & Functions Retractable design, white ambient thru glass lighting, sensor controlled power adjustment, grease and activated charcoal filter saturation indicator, 2x large grease filters, dishwasher safe components, controllable via compatible cooktops, seamless combination with frameless cooktops
No. of Speed Settings 4
Hood Function Retractable
Microwave Power 6 Output levels: 1000, 600, 450, 360, 180, 90W
Technical
Exhaust Type Recirculating / Ducted (with conversion kit)
Max Standard Airflow 519 m³/h
Max Boost Airflow 833 m³/h
Max Standard Noise Level 65 dB
Max Boost Noise Level 71 dB
Air Outlet Diameter Ø150 mm
Grease Filter Material Metal
Filter Type Regenerable activated charcoal filter
Filter Service Life Regenerable up to 30 times
Filter Clean / Change Indicator Yes
What's Included Gaggenau 200 Series downdraft extractor (AL200190)
Optional Accessories Regenerable activated charcoal filter, activated charcoal filter
Downloads
AL200190 Datasheet
AL200190 Instruction
